DETAILS

• Platform

  Scalpel
• Model Name

  Scalpel Carbon 4
• Model Code

  C24402M

FRAME KIT

• Chassis
  Scalpel Carbon, 100mm travel, Proportional Response Tuned, FlexPivot chainstay, PF30-83, tapered head tube, 12mm Speed ​​Release thru-axle, Ai offset, Stash compatible
  Fork
  Fox Float Performance 32 SC, 100mm, 15x110mm thru-axle, tapered steerer, 51mm offset, remote actuated
  Headset
  Integrated, tapered, sealed bearing

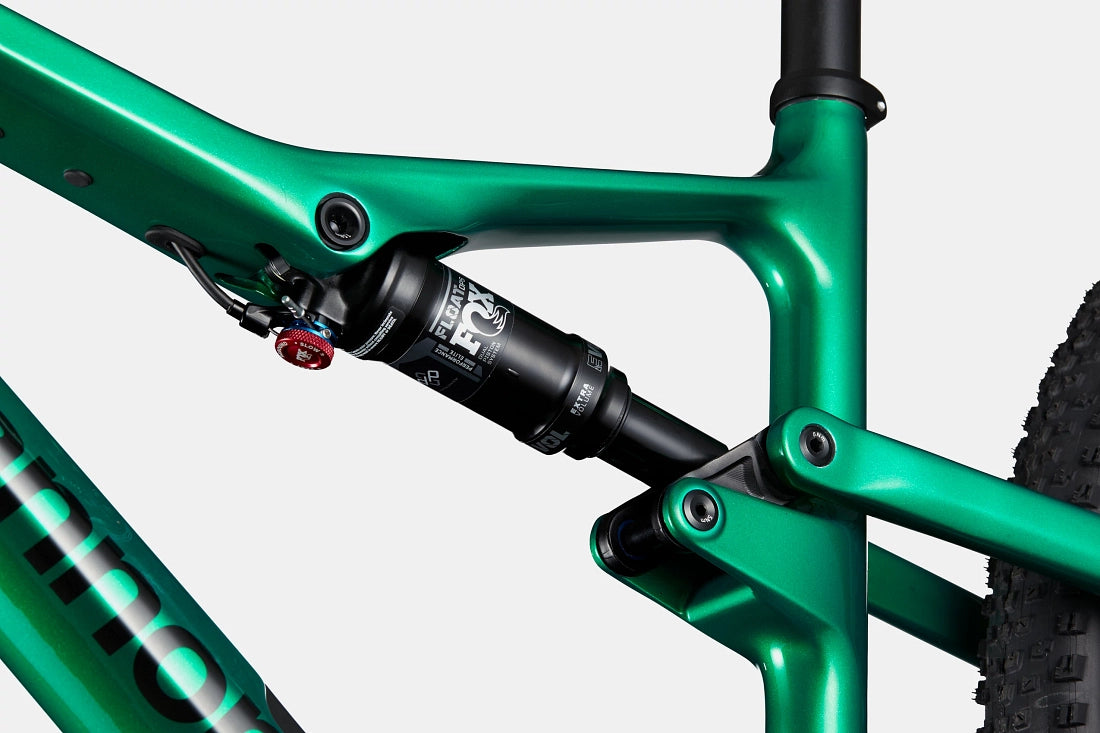

  Rear shock absorber
  Fox Float DPS Performance Elite EVOL, remote lockout, adjustable extension

TRANSMISSION

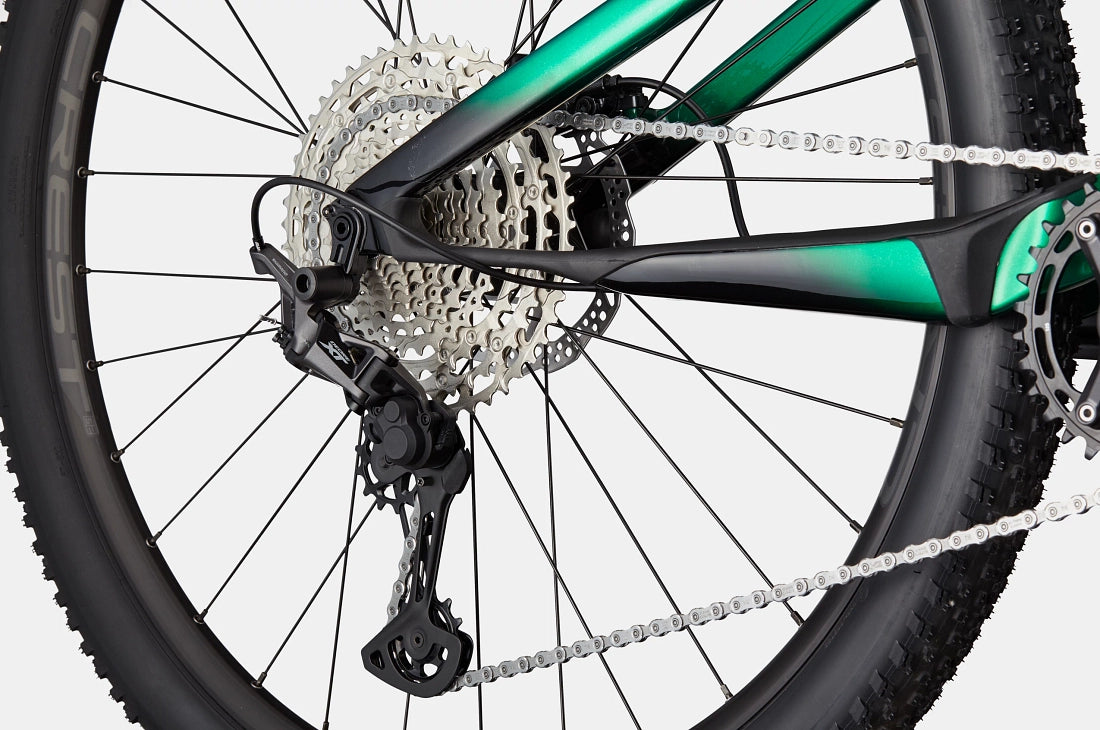

• Exchange
  Shimano XT
  Gear levers
  Shimano Deore M6100, 12 speed
  Chain
  Shimano Deore 6100, 12 speed

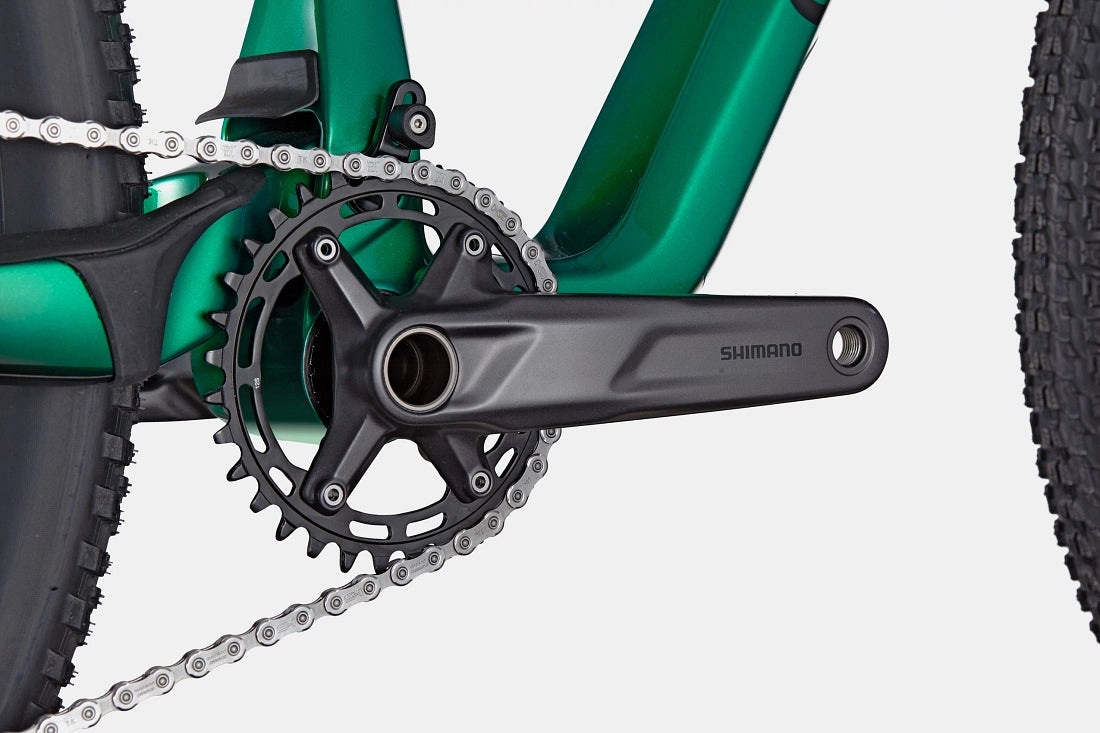

  Crankset
  Cannondale 1, BB30a, OPI SpideRing, 32T, Ai Offset
  Sprocket pack
  Shimano Deore M6100, 10-51, 12 speed
  Central movement
  Cannondale PressFit30 alloy

BRAKES

• Brakes
  Shimano Deore 6100 hydraulic disc, 160/160mm RT54 rotors
  Brake levers
  Shimano Deore hydraulic disc

WHEELS

• Circles
  WTB STX i23 TCS, 32 hole, tubeless ready
  Rays
  DT Swiss Champion
  Tire size
  2.2
  Wheel size
  29
  Hubs
  (F) Shimano MT400, 15x110mm thru axle / (R) Shimano MT410, 12x148mm thru axle
  Tyres
  (F) Maxxis Ardent Race, 29x2.2", EXO Protection, tubeless ready, (R) Maxxis Recon Race, 29x2.2", EXO Protection, tubeless ready
  Front tyre
  Maxxis Ardent Race, 29x2.2", EXO protection, tubeless ready
  Rear tire
  Maxxis Recon Race, 29x2.2", EXO protection, tubeless ready

COMPONENTS

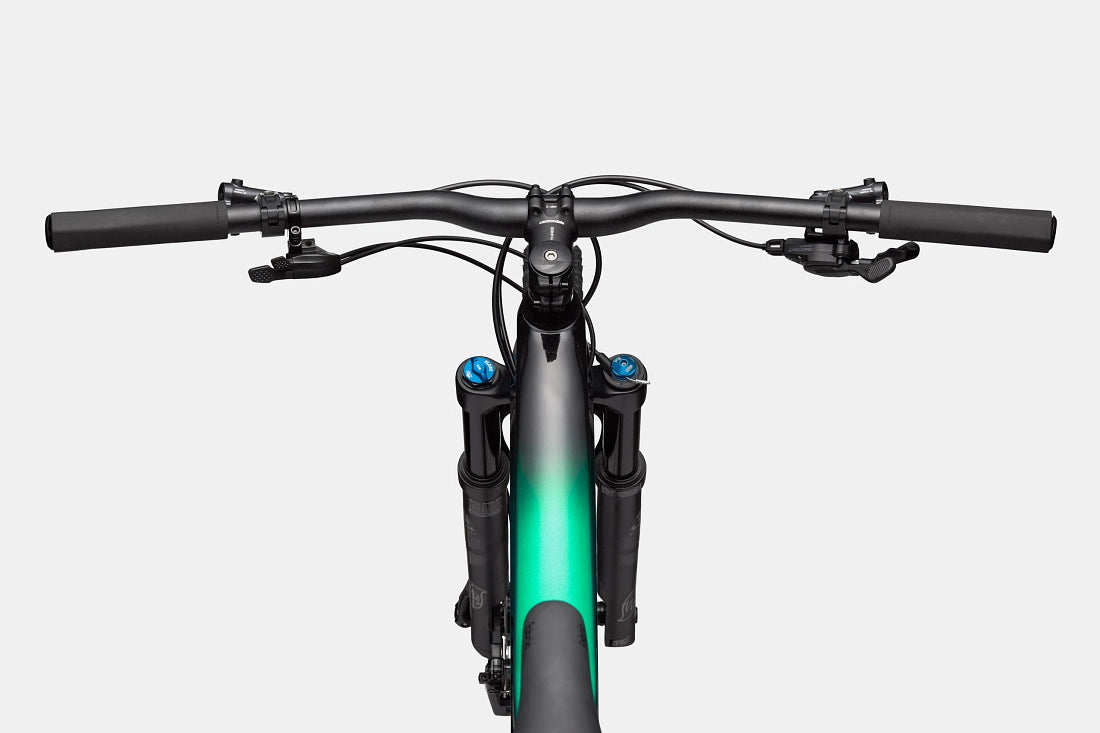

• Handlebar
  Cannondale 2 Flat, 2014 alloy butt, 31.8mm, 3° rise, 8° sweep, 760mm
  Handlebar stem
  Cannondale 2, 6061 alloy, 35mm, 0°
  Handle
  Cannondale locking knobs
  Saddle
  Cannondale Scoop Shallow Sport, steel rails
  Seatpost
  Cannondale 2, 7075 alloy, 31.6x400 mm
