DETAILS

• Platform

  Scalpel
• Model Name

  Scalpel Carbon 3
• Model Code

  C24401M

FRAME KIT

• Chassis
  Scalpel Carbon, 100mm travel, Proportional Response Tuned, FlexPivot chainstay, PF30-83, tapered head tube, 12mm Speed ​​Release thru-axle, Ai offset, Stash compatible
  Fork
  Lefty Ocho, 100mm, chamber damper with remote lockout, OppO spring system, tapered steerer, 55mm offset
  Headset
  Integrated sealed angular contact bearings, 1-1/8 to 1.5",

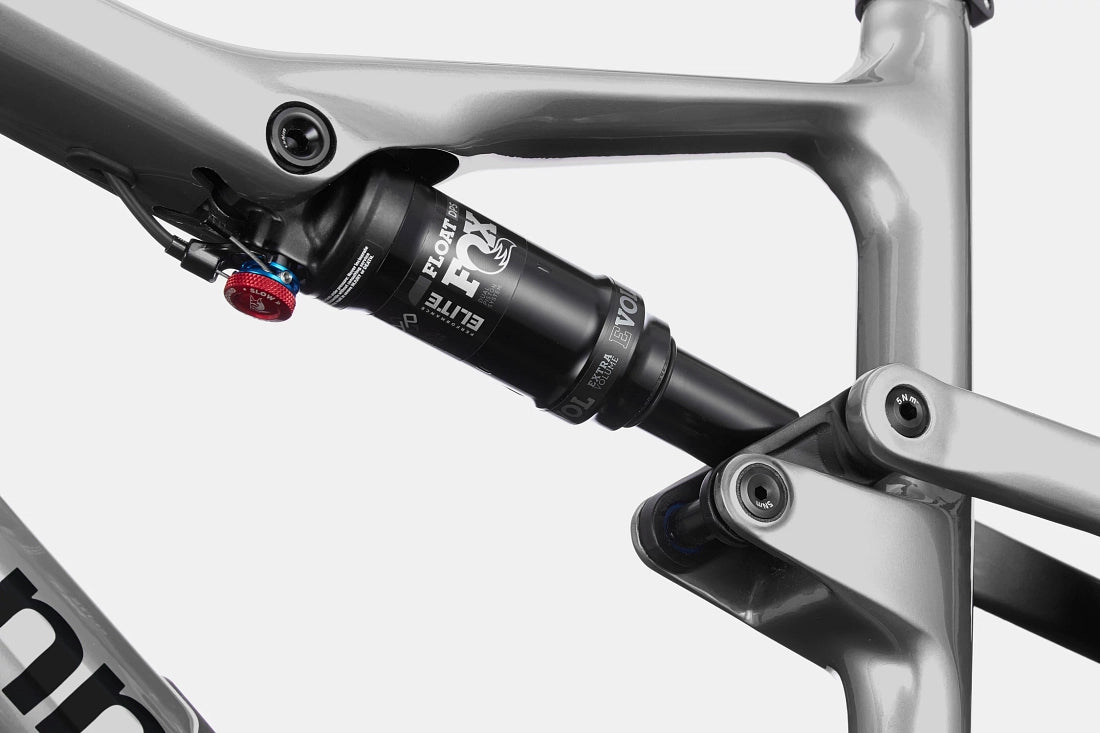

  Rear shock absorber
  Fox Float DPS Performance Elite EVOL, remote lockout, adjustable extension
•


TRANSMISSION

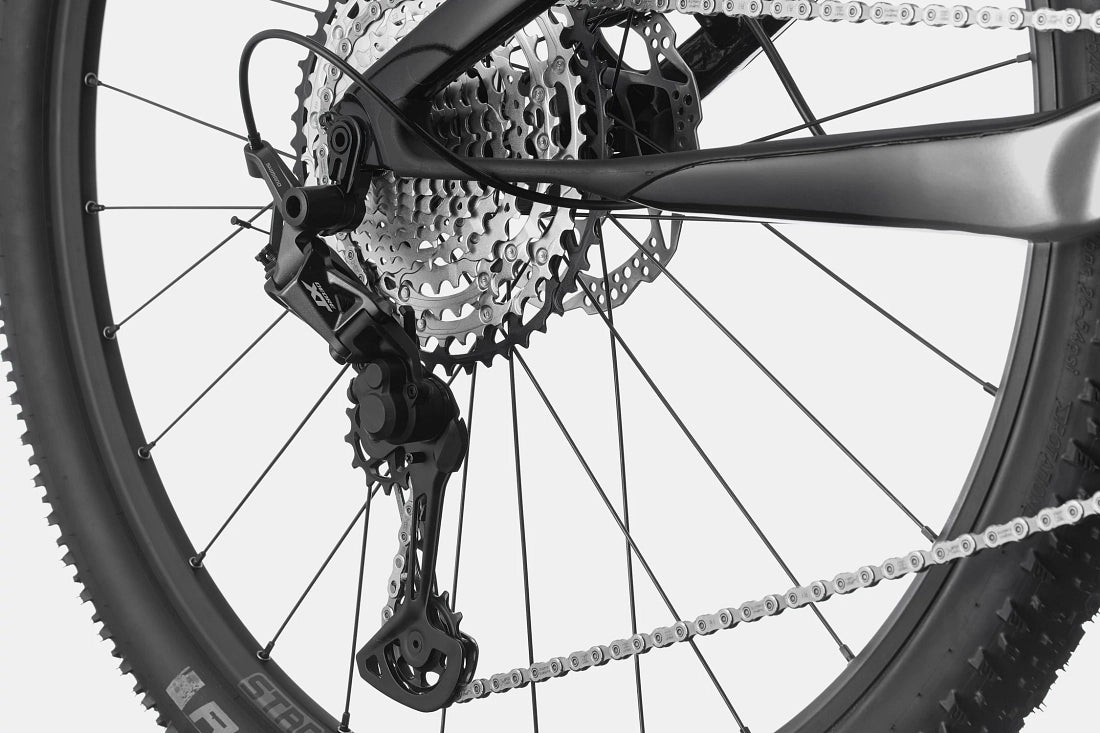

• Exchange
  Shimano XT
  Gear levers
  Shimano SLX, 12 speed
  Chain
  Shimano SLX, 12 speed

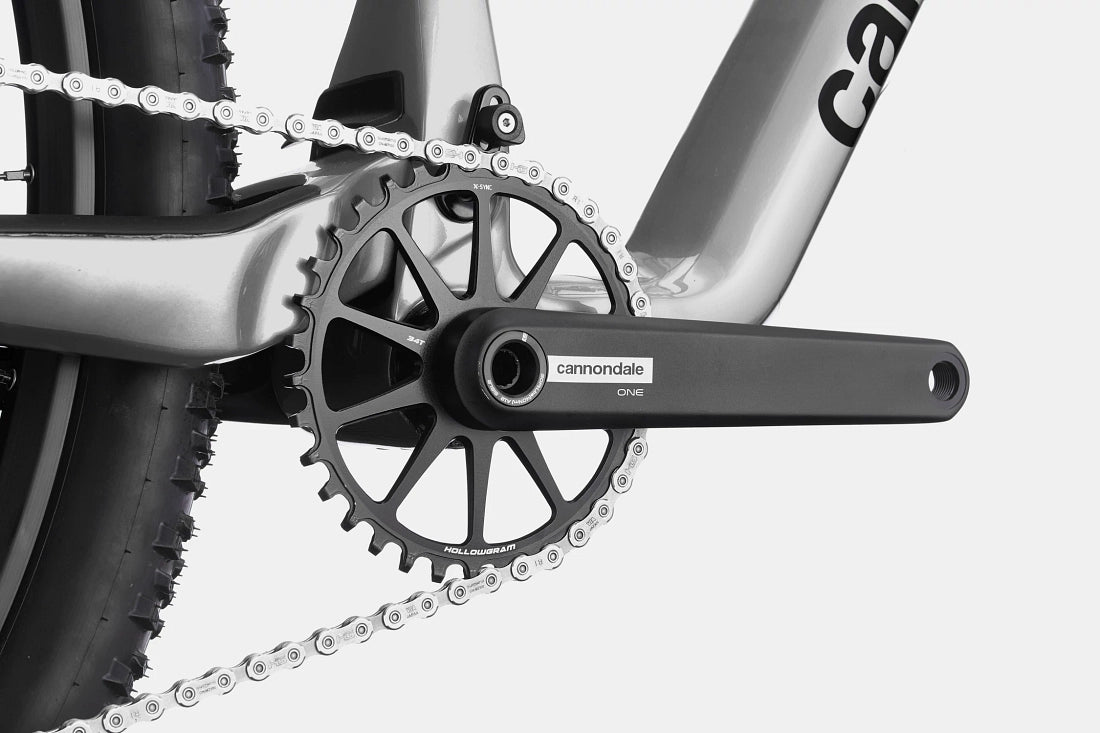

  Crankset
  HollowGram, BB30a, OPI SpideRing, 34T, Ai offset
  Sprocket pack
  Shimano SLX, 10-51, 12 speed
  Central movement
  Cannondale PressFit30 alloy
•


BRAKES

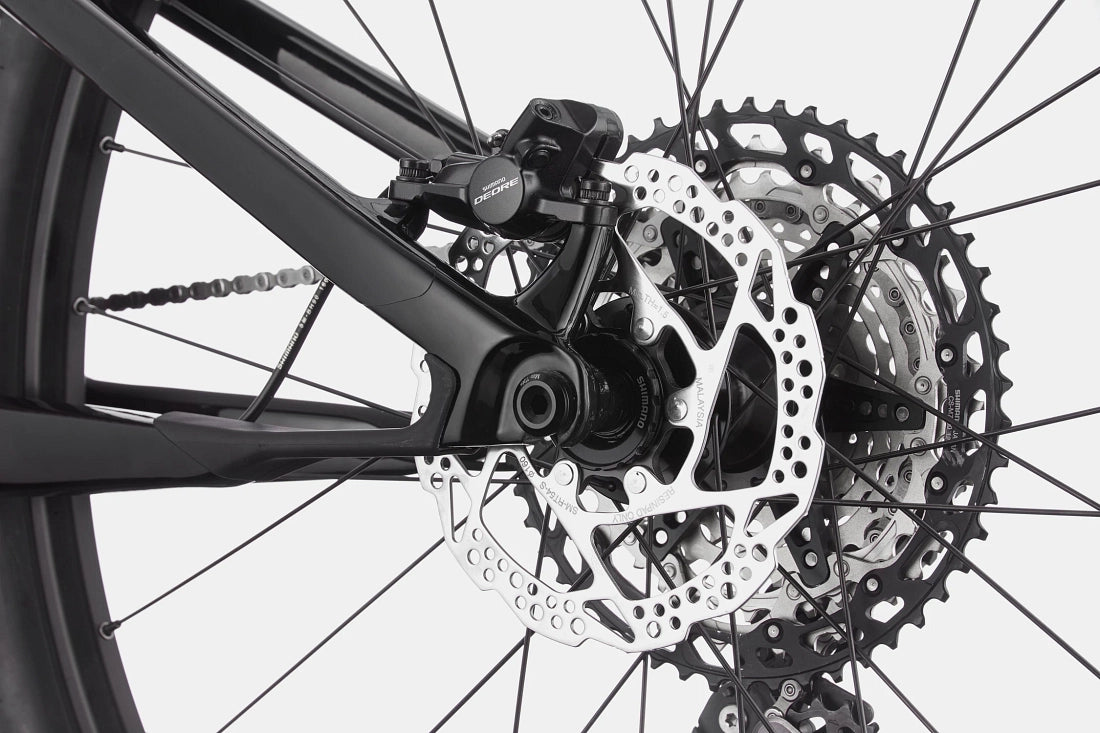

• Brakes
  Shimano Deore hydraulic disc, 160/160mm RT54 rotors
  Brake levers
  Shimano Deore hydraulic disc
•


WHEELS

• Front Hub
  Left-handed 60
  Rear hub
  Shimano MT510, 12x148mm thru axle
  Brake type
  Disk
  Circles
  Stan's NoTubes Crest S1, 28h, tubeless ready
  Rays
  DT Swiss Champion
  Tire size
  2.25
  Wheel size
  29
  Tyres
  (F) Schwalbe Racing Ray Performance, 29x2.25", Addix Compound, tubeless ready, (R) Schwalbe Racing Ralph Performance, 29x2.25", Addix Compound, tubeless ready
  Front tyre
  Schwalbe Racing Ray Performance, 29x2.25", Addix compound, tubeless ready
  Rear tire
  Schwalbe Racing Ralph Performance 29x2.25 Addix compound tubeless ready
•


COMPONENTS

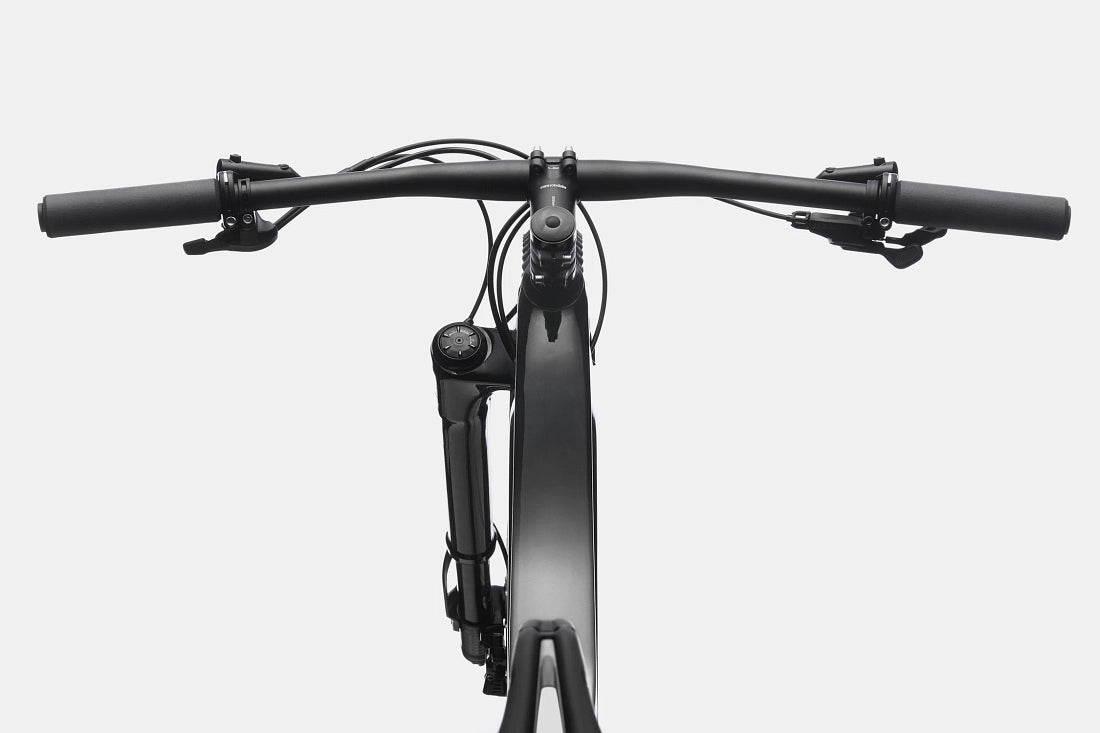

• Handlebar
  Cannondale 2 Flat, 2014 alloy butt, 31.8mm, 3° rise, 8° sweep, 760mm
  Handlebar stem
  Cannondale 3, alloy 6061, 31.8, 7th
  Handle
  Cannondale XC Silicone
  Saddle
  Prologue Dimension NRD, STN rails
  Seatpost
  Cannondale 2, 7075 alloy, 31.6x400 mm
•


CONNECTIVITY

• Wheel sensor

  Cannondale wheel sensor
