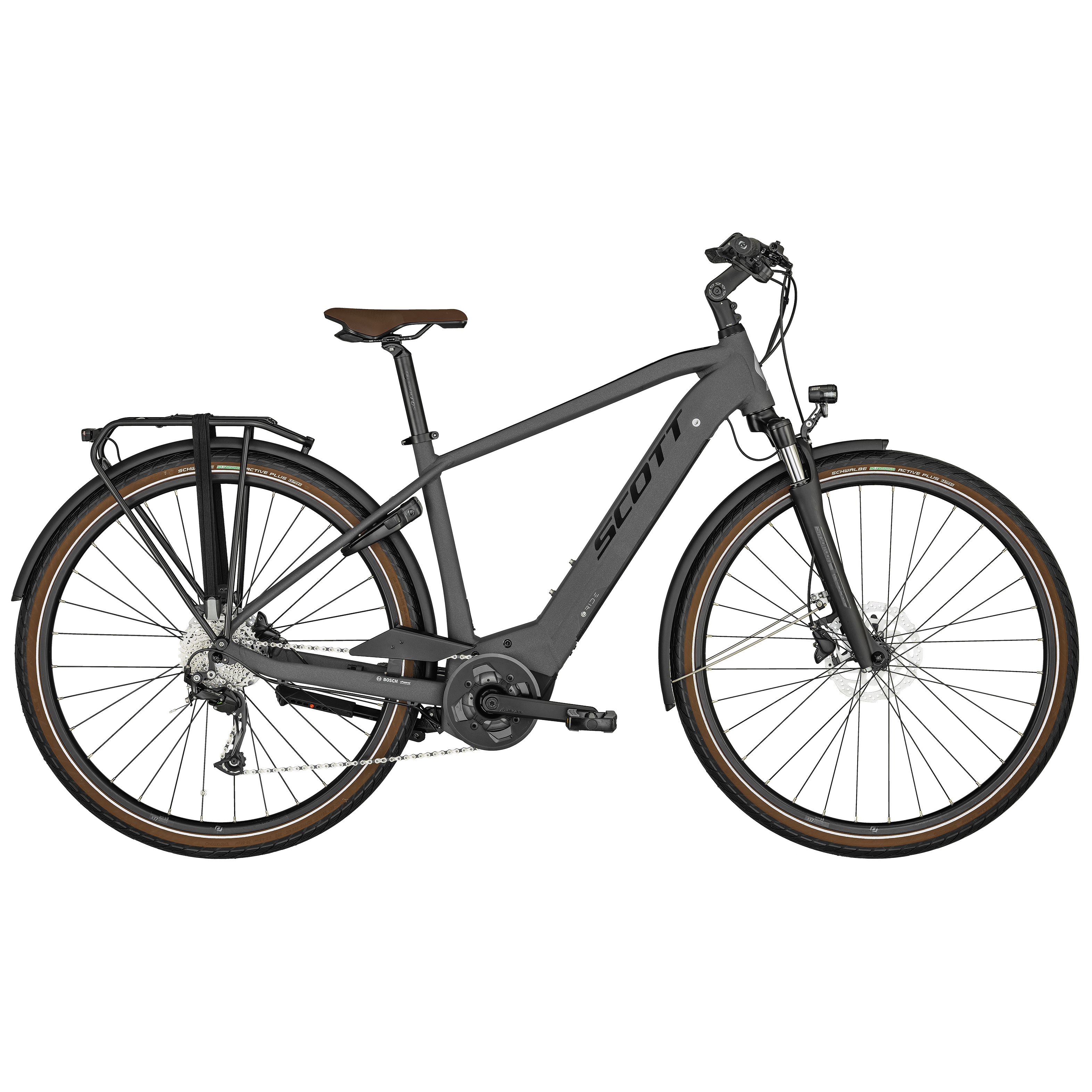

The Sub Active eRIDE offers exemplary comfort and excellent simplicity. Thanks to the wide saddle and elevated cockpit, you will never be uncomfortable on your bike. The lights, carrier, and fenders make it city-ready.
Please note that bike specifications are subject to change without prior notice.
FrameSub eRIDE 6061 Alloy
ForkSUNTOUR NEX-E25 DS QR 700C TAPERED / 63mm Travel
MotorBosch Active BES2EU: 25kmh / US: 20mph
BatteryPowerTube 400Wh
DisplayPurion Display
Charger2A Charger
Rear DerailleurShimano Alivio 3100 9 Speed
ShiftersShimano Alivio 3100 9 Speed
CranksetMiranda 172,5mm
Chainring38T Chainflow / Chainprotector
ChainKMC E9s NPBK
Cassette Shimano CS HG400 11-36
BrakesShimano BR-M200 Disc
Rotor180/F SM-RT10 and 160/R SM-RT10
HandlebarSyncros UC3.0 680mm / 10° bend
H'stemSyncros UC 3.0 adjustable
SeatpostSyncros 3.0 / 31.6mm / 350mm
SeatSyncros Capilano
HeadsetGW semi integrated
Hub (Front)Shimano HBMT200B 32H QR CL
Hub (Rear)Shimano FHMT200B 32H QR CL
SpokesBLACK spokes * F: 14G / R: 13G
RimCross X17 Disc 32h
Front TireSchwalbe Energizer Active Plus 700x50c
Rear TireSchwalbe Energizer Active Plus 700x50c
LightsFront: Axa Compactline 35 / Rear: Axa
RackRacktime w/ spring clamp SnapIt 2.0
PEDALSSyncros SP-828
ExtrasAbus 4750L ART approved / Battery Lock
AccessoriesCurana wide extruded fenders, Ursus Mooi Central kickstand
Approx weights in KG26.4
Approx weights in LBS58.2
Max. System Weight128kgThe total weight includes the bike, the rider, the equipment, and any additional luggage.
